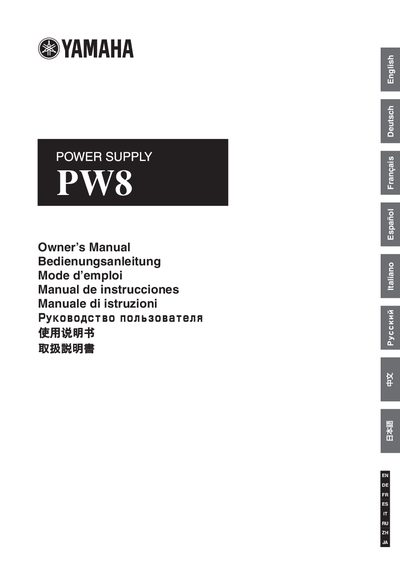

This manual explains safe handling, installation, and operation of the Yamaha PW8 power supply. It includes important safety warnings such as keeping the unit away from moisture, using only the supplied power cable, and ensuring proper grounding before use.
The guide describes the control panel, power‑on sequence, and how to connect the PW8 to a mixing console or other equipment. It also covers parallel operation of two PW8 units, the function of each connector, and provides the full technical specifications of the unit.
| +15 V Output | +15 V |
|---|---|
| -15 V Output | -15 V |
| +12 V Output | +12 V |
| +48 V (Phantom) Output | +48 V |
| Power Consumption | 265 W (IM8‑40), 230 W (IM8‑32), 200 W (IM8‑24) |
| Dimensions | Height 100.5 mm, Depth 412 mm, Width 480 mm |
| Net Weight | 11 kg |
Yes, two PW8 units can be paralleled using the PSL1010 power‑connection cable and the PARALLEL INPUT interface.
Do not use the unit in wet or humid environments, keep it away from liquids, and only operate it with the specified voltage.
