This is a user manual for an ETC car mount. It mainly introduces the safety of the product, the names and functions of the various parts, the usage process, operation methods, abnormal handling, troubleshooting, common problems, uninsertion/removal warning, maintenance, and connection with navigation.

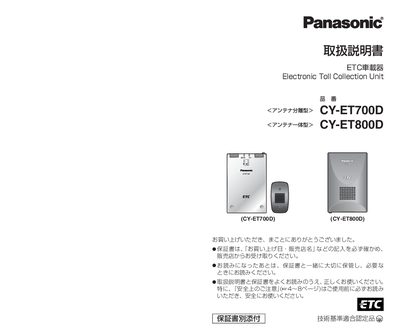

This manual explains how to install, set up, and operate the Panasonic CY‑ET700D electronic toll‑collection (ETC) unit. It covers safety precautions, the required ETC card, and the proper wiring and mounting procedures for vehicle use.
The document also provides troubleshooting tips, a list of common questions, warranty information, and detailed technical specifications such as power requirements, current consumption, weight, and dimensions. This manual is written in Japanese.
| Power Supply | DC12V / DC24V |
|---|---|
| Current Consumption (18 V standby) | 75 mA |
| Current Consumption (24 V standby) | 45 mA |
| Unit Weight (without cable) | 80 g |
| Unit Dimensions (W × H × D) | 7 mm × 145 mm × 109 mm |
| Antenna Dimensions (W × H × D) | 40 mm × 26 mm × 70 mm |
No. Cards whose expiration date has passed or that have been invalidated by the issuer must not be used.
Connect the unit to a DC12 V or DC24 V power source as specified in the specifications.
Disconnect the vehicle battery before wiring, use only the supplied parts, and avoid routing cables near steering, brake, or moving parts.
