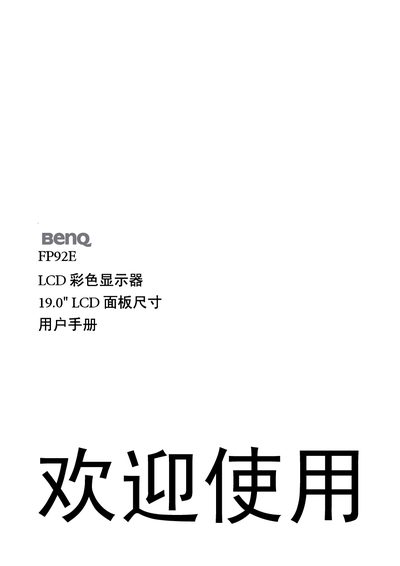

This BenQ FP92E User Manual provides detailed information about the monitor, including its specifications, features, usage instructions, and troubleshooting.
This manual covers everything needed to install, configure, and use the BenQ FP92E 19.0" LCD display. It includes safety guidelines, hardware installation steps, connection of video and audio cables, and detailed instructions for adjusting resolution, refresh rate, and image settings through the OSD menu.
The document also provides a troubleshooting section, a FAQ, and a full specification table that lists display size, resolution, brightness, power consumption, environmental limits, and supported PC resolutions. This manual is written in Chinese.
| Model | FP92E |
|---|---|
| Display Size | 19.0" active TFT |
| Native Resolution | 1280 x 1024 |
| Color Depth | 16.2 million colors |
| Contrast Ratio | Typical 550:1 (minimum 350:1) |
| Brightness | Typical 270 cd/m² (minimum 215 cd/m²) |
| Response Time | Typical 8 ms (Ton+Toff), max 15 ms |
| Viewing Angle | Typical 140/135 (CR=10) |
| Input Signals | Digital DVI‑D (optional), D‑Sub (VGA) |
| Dimensions (W×H×D) | 409.2 mm × 408.8 mm × 167 mm |
| Power Input | 90‑264 V, 47‑63 Hz |
Unplug the display, then clean the screen with a non‑abrasive cloth and avoid any liquids, wetting agents, or glass cleaners.
Refer to the "How to Adjust Screen Resolution" section (page 20) and follow the Windows instructions provided there.
