Start here

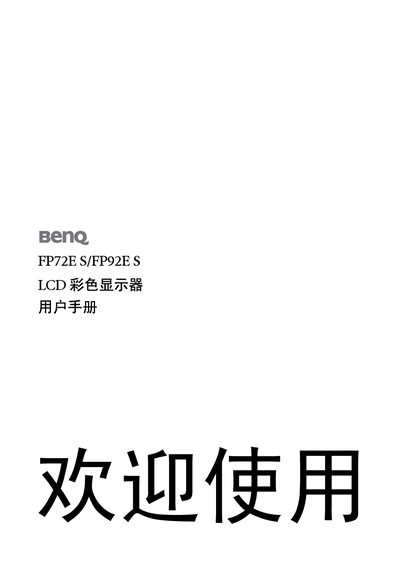

BenQ FP72E S / FP92E S LCD Color Display User Manual
This manual covers safety precautions, cleaning, and maintenance for the BenQ FP72E S/FP92E S LCD color displays. It explains how to unpack the product, protect the screen during transport, and safely clean the panel using a non‑abrasive cloth.
The guide walks you through hardware installation, connecting video (DVI‑D or D‑Sub) and audio cables, adjusting screen resolution, refresh rate, and other OSD settings, as well as troubleshooting common issues. Technical specifications such as display size, resolution, contrast, response time, power consumption, and environmental limits are listed at the end of the document. This manual is written in Chinese.
BenQ FP92E specifications
| Display size | 19.0" active TFT |
|---|---|
| Resolution | 1280 x 1024 |
| Typical contrast ratio | 800:1 |
| Minimum contrast ratio | 500:1 |
| Typical brightness | 300 cd/m² |
| Minimum brightness | 240 cd/m² |
| Maximum response time | 8 ms (Ton + Toff) |
| Typical viewing angle | 160/160 (CR>10) |
| Minimum viewing angle | 140/140 (CR>10) |
| Maximum power consumption | 50 W |
| Standby power consumption | <1 W |
| Input signal (analog) | PC RGB 0.7 Vpp / 75 Ω |
| Input signal (digital) | DVI‑D (optional) |
| Speakers | 1 W × 2 |
| Operating humidity | 10 % – 90 % |
Source: BenQ FP72E S / FP92E S LCD Color Display User Manual
All BenQ FP92E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should I clean the LCD screen?
Unplug the display from the wall outlet, then clean the LCD surface with a non‑abrasive cloth; do not use liquids, wetting agents, or glass cleaners.
Can I use DVI‑D and D‑Sub cables at the same time?
No. Do not use both DVI‑D and D‑Sub cables on a single PC; only one type should be connected at a time.
How should I clean the LCD display?
Unplug the display, then clean the screen with a non‑abrasive cloth and avoid any liquids, wetting agents, or glass cleaners.
How can I adjust the screen resolution?
Refer to the "How to Adjust Screen Resolution" section (page 20) and follow the Windows instructions provided there.
