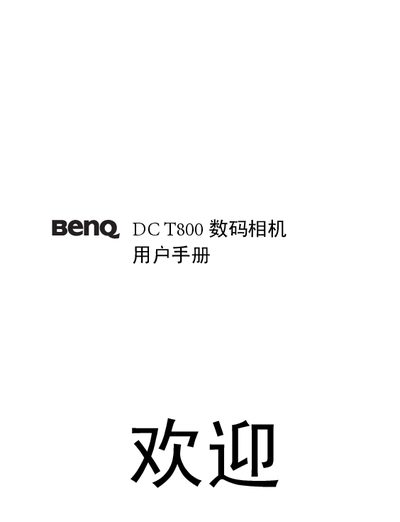

This manual introduces how to use the DC T800 digital camera.
This manual introduces the BenQ DC T800 digital camera, covering safety handling, environmental limits, and the contents of the package. It explains how to install the battery, charge it, insert and format an SD card, and configure language, date, and time settings.
Detailed sections describe shooting modes, focus, exposure, ISO, white balance, video recording, playback, and special functions such as smart zoom and PictBridge printing. The troubleshooting chapter lists common problems and solutions, and the specifications section lists the camera’s sensor, lens, zoom, and other technical data. This manual is written in Chinese.
| Image sensor | 8 MP CCD, 1/2.5 inch |
|---|---|
| LCD display | 3‑inch LTPS LCD, 230 k dots |
| Digital zoom (preview / playback) | 4× preview, 12× playback |
| Smart zoom (VGA) | 30× |
| Lens aperture | F2.7 – F5.2 |
| Shutter speed | 1/2000 s – 1/4 s (night mode up to 8 s) |
| ISO range | Auto, 100‑4000 |
| Video format | MPEG‑4 AVI, 640×480, 30/15 fps |
| Supported memory cards | 2 GB SD and SDHC |
| Battery | Li‑ion rechargeable |
| Dimensions (W×H×D) | 91 mm × 59 mm × 16.9 mm |
| Weight | 130 g (without battery and SD card) |
Make sure a battery is installed correctly and that it is charged; the camera will not turn on without a properly installed battery.
Unlock the write‑protect switch on the SD card, then use the camera’s menu to format the card before first use.
Install an XviD codec and use Windows Media Player 9.0 or later; the camera records MPEG‑4 video that requires the codec.
Connect the camera to the computer with the supplied USB cable and use the provided software or Windows Explorer to transfer files.
