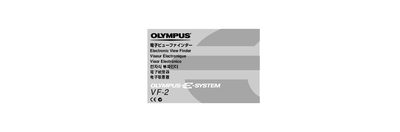

This document provides instructions, precautions, and main specifications for the VF-2 electronic viewfinder.
This manual explains how to attach and detach the electronic viewfinder, adjust the diopter, and switch between LCD and viewfinder displays. Safety precautions are included, such as not carrying the camera by the viewfinder and avoiding simultaneous use of an external flash.
Technical specifications such as display resolution, field of view, magnification, eye point, weight, and dimensions are listed, along with regulatory information for the United States and Canada. This manual is written in Japanese.
| Display pixels | Approx 1.440.000 dots |
|---|---|
| Field of view | 100% |
| Magnification | Approx 1.15 |
| Eye point | Approx 18 mm |
| Diopter adjustment range | -3.0 to +1.0 |
| Weight | 32 g |
| Dimensions (W×H×D) | 29.4 × 48.5 × 46.3 mm |
The VF-2 viewfinder weighs 32 g (without the connector cover).
