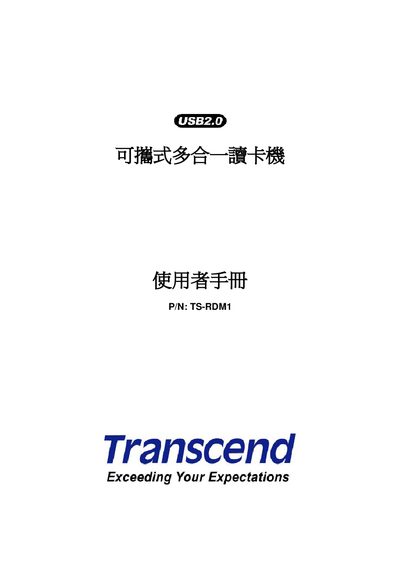

This document is the user manual of the portable multi-card reader, which introduces the features and characteristics of the product, usage methods, installation of the driver program, etc.
The TS‑RDM1 is a compact USB 2.0 card reader that supports a wide range of memory cards, including SD, miniSD, MMC, Memory Stick variants, and, via adapters, microSD and MMCmicro. It requires no external power and features an LED indicator for card status and data transfer.
This manual covers unpacking, system requirements, driver installation for Windows, Mac and Linux, normal operation, safe removal, detailed specifications, warranty information, and a troubleshooting guide. It also includes a glossary of terms used throughout the document. This manual is written in Chinese.
| Dimensions | 64.8 mm × 33 mm × 12.2 mm |
|---|---|
| Weight | 23 g |
| Power Supply | 5 V DC from USB port |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 90 °C |
| Relative Humidity | 0 % to 90 % RH |
| LED Indicator | 1 group |
| Certifications | CE, FCC, BSMI |
| Warranty Period | 2 years |
No driver installation is required; the operating system already includes the necessary driver for the card reader.
Use the “Safe Remove” procedure described in the manual before unplugging the device.
