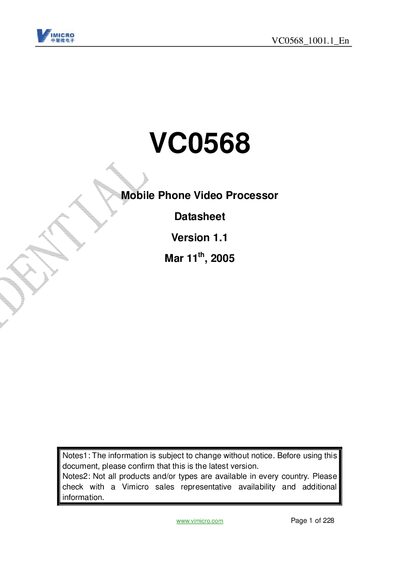

The Vimicro VC0568 datasheet provides specifications, pin layout, block diagrams, and electrical characteristics for the mobile phone video processor.
About this manual
VC0568 is a mega‑pixel camera controller chip for mobile applications. It integrates an image signal processor, JPEG codec, graphics engine and LCD controller, enabling real‑time still image and video capture, processing and display on mobile phone screens. The chip includes a 384 KB on‑chip SRAM for JPEG buffering and supports direct interfaces to CMOS/CCD sensors and LCD panels.
Key features include low‑power operation (100 µA sleep, 20 mA preview), a 7 mm × 7 mm 100‑pin fpBGA package, support for up to 1.3‑megapixel sensors, up to 16× digital zoom, and flexible host interfaces (ARM, 80‑type, 68‑type buses). The datasheet details pin assignments, register maps, electrical characteristics and mechanical dimensions.
What's inside
- Overview
- Features
- Pin Layout
- System Block Diagram
- Chip Block Diagram
- Main Building Block
- Work Mode
- Register Map
- Electrical Characteristics
- Mechanical Dimensions
Specifications
| Sleep mode current | 100 µA |
|---|
| Preview mode current (160x120 @ 30 fps) | 20 mA |
|---|
| Core voltage | 1.8 V |
|---|
| Package size | 7 mm × 7 mm fpBGA‑100 |
|---|
| On‑chip SRAM | 384 KB |
|---|
| Maximum digital zoom | 16× |
Frequently asked questions
What is the core voltage of the VC0568?
The core operates at 1.8 V.
What is the package size of the VC0568?
It uses a 100‑pin fpBGA package measuring 7 mm × 7 mm.
How much on‑chip SRAM does the VC0568 provide?
The chip includes 384 KB of on‑chip SRAM.
What is the maximum digital zoom supported by the VC0568?
The device supports up to 16× digital zoom.
