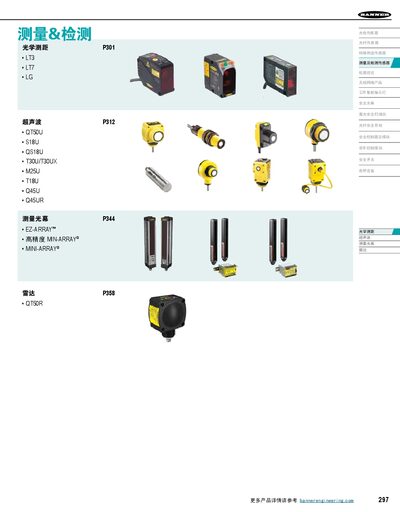

Comprehensive manual for Banner Engineering L‑GAGE® laser displacement sensors covering LH, LT3, LT7, LG5 and LG10 models.
The manual provides detailed technical parameters, operating principles, application guidance and product selection information for the L‑GAGE® series of laser displacement sensors. It includes sections on optical ranging, ultrasonic measurement, light curtains and radar technologies used in industrial automation and inspection.
Each sensor model is described with its power supply requirements, output options (4‑20 mA, RS‑485, analog voltage), protection features (IP67, reverse polarity), measurement range, resolution and environmental specifications. Wiring diagrams, response time settings and mounting instructions are also included. This manual is written in Chinese.
| Laser wavelength (LH series) | 670 nm (visible red, 1 mW) |
|---|---|
| Supply voltage (LH series) | 18 to 30 V dc |
| Resolution (LH30 model) | 1 µm |
| IP protection rating | IP67 |
It uses a 670 nm visible red laser with a 1 mW output.
The sensors operate from 12 to 30 V dc, with the LH series specified at 18 to 30 V dc.
All models are rated IP67 for dust and water protection.
