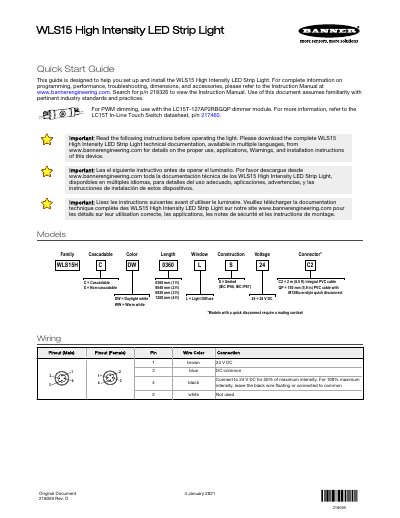

Quick start guide with installation steps, wiring diagram, specifications and safety information for the WLS15 LED strip light.
This Quick Start Guide provides the essential information needed to install and operate the WLS15 High Intensity LED Strip Light. It includes wiring pinouts, recommended power supplies, mounting options, and safety warnings. The guide also points to the full instruction manual for detailed programming and troubleshooting.
Technical details such as supply voltage, current limits for different lengths, operating temperature range, environmental ratings (IP66/IP67), and mechanical shock/vibration specifications are listed. Dimensions for each model length and recommended mounting hardware are also provided.
| Supply Voltage | 24 V DC (+20%/-10%) |
|---|---|
| Typical Current (A) at 25°C – 0360 mm | 0.285 |
| Operating Temperature | –40 °C to +50 °C |
| Environmental Rating | IEC IP66 and IEC IP67 |
| Vibration | 10 Hz to 55 Hz, 1.0 mm peak‑to‑peak |
| Shock | 15 G, 11 ms |
| Length – 0360 mm | 286.4 mm (11.28 in) |
It requires a 24 V DC supply with a tolerance of +20%/‑10%.
Yes, it is rated IEC IP66 and IEC IP67 for wet locations.
