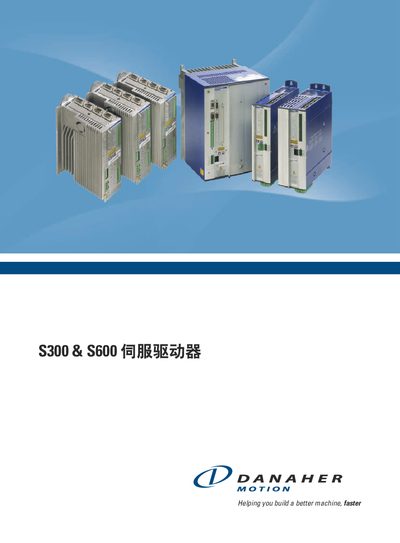

The document introduces the features and characteristics of Danaher Motion's S300 and S600 servo drives, including a wide range of motion control systems and components, various application fields, and the integrated motion control solutions provided through Motion Engineering.
The document introduces Danaher Motion’s S300 and S600 high‑performance servo drivers, describing their design, key features and the range of applications such as robotics, packaging and industrial automation. It outlines the series’ electrical ratings, supported communication protocols and safety functions.
Technical details include voltage and current ratings, speed and position loop performance, wiring diagrams and configuration options. The guide also lists contact information for global service centers and warranty terms. This manual is written in Chinese.
| Rated voltage | 115‑480 VAC |
|---|---|
| Rated current | 15‑70 A |
| Speed loop bandwidth | 400 Hz |
| Position loop refresh rate | 250 µs (4 kHz) |
| Operating temperature range | 0 °C to 45 °C (up to 55 °C in special use) |
| Internal power loss | 35‑90 W |
The drivers are rated for 115‑480 VAC and a current range of 15‑70 A.
The maximum speed loop bandwidth is 400 Hz.
They operate from 0 °C to 45 °C, and up to 55 °C in certain conditions.
