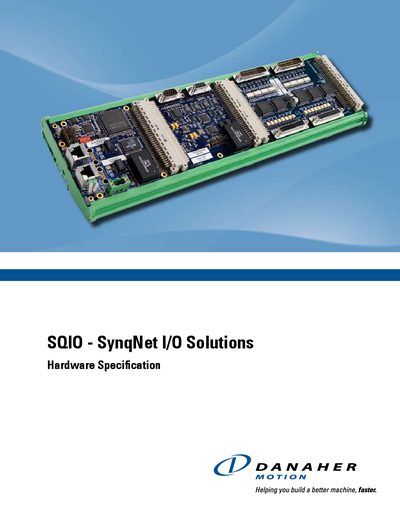

SQIO is a hardware specification for SynqNet I/O solutions, providing flexible analog and digital I/O solutions tailored to machine requirements. It offers real-time I/O and motion performance data for system visibility and analysis. The tight integration with the Motion Programming Interface (MPI) reduces system development time. SQIO leverages the 100 Mbit specification of SynqNet to achieve a new level of I/O performance.
The SQIO product family provides flexible analog and digital I/O solutions for SynqNet networks. Modules connect via the SQID (SynqNet Interface Device) and can be combined to create custom I/O configurations, supporting high‑speed capture and real‑time motion data.
The document details the hardware features, connector types, electrical specifications, and mounting options for each SQIO board, including digital, analog, mixed‑module, and high‑speed capture boards.
| Digital I/O (DIN32DOUT32) inputs | 32 |
|---|---|
| Digital I/O (DIN32DOUT32) outputs | 32 |
| Analog I/O (ADCADACE) inputs | 4 |
| Analog I/O (ADCADACE) outputs | 4 |
| High‑speed capture inputs (HSIN32) | 32 |
| Mixed Module digital inputs | 64 |
| Mixed Module analog inputs | 16 |
| Mixed Module analog outputs | 8 |
| DIN32DOUT32 max current consumption | 200 mA @ 3.3 V |
| Operating temperature (Mixed Module) | 0‑50 °C |
The DIN32DOUT32 board provides 32 digital inputs.
The SQID uses either a standard RJ‑45 connector or a Micro‑D option.
The Mixed Module I/O board operates from 0 °C to 50 °C.
The Mixed Module board provides 16 analog inputs.
