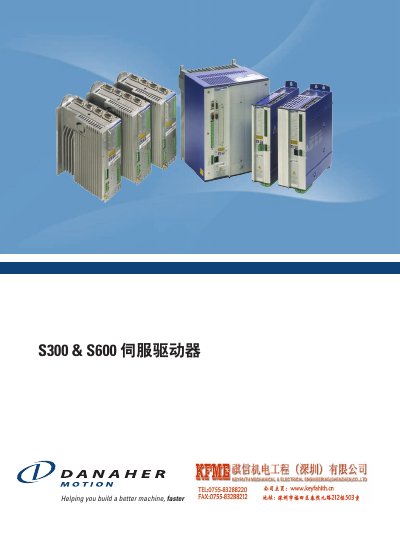

Kollmorgen S300 & S600 Servo Driver User Manual

About this manual

This manual describes the Kollmorgen SERVO STAR® S300 and S600 high‑performance servo drivers. It covers product features, electrical characteristics, supported motor types, and the wide range of voltage and current ratings available for each model.

The document also details installation, wiring diagrams, I/O options, communication interfaces (PROFIBUS‑DP, DeviceNet, SERCOS, CANopen, RS232), programming environment, and application examples such as robotics, packaging, and conveyor systems. This manual is written in Chinese.

What's inside

• Product Overview
• Technical Specifications
• Electrical Characteristics
• I/O Options
• Communication Interfaces
• Installation and Wiring
• Programming and Motion Control
• Application Examples
• Dimensions and Ordering Information

Specifications

Frequently asked questions

What input voltage ranges are supported by the S300 and S600 drivers?

The S300 supports 115‑230 VAC single‑phase or three‑phase and 208‑480 VAC three‑phase; the S600 supports 208‑480 VAC three‑phase.

Which communication interfaces are available on the S300 & S600 drivers?

The drivers can be equipped with PROFIBUS‑DP, DeviceNet, SERCOS, CANopen, and RS232 communication option cards.

What is the maximum continuous output current for the S600 series?

The S600 series can deliver up to 70 A continuous output current per phase.

What is the speed loop bandwidth of these servo drivers?

The speed control loop bandwidth is specified up to 400 Hz.
