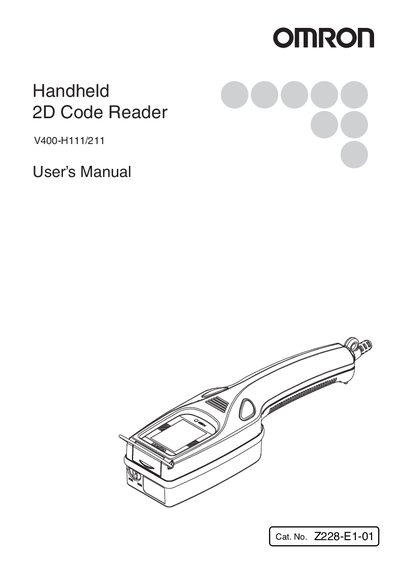

This manual describes the functions, performance, and application methods of the OMRON V400-H111/H211 handheld 2D code reader. This manual is intended for personnel with knowledge of electrical systems. Be sure to read and understand this manual thoroughly before using the product, and keep this manual in an easily accessible location for quick reference when required.
The Omron V400-H111/211 is a handheld 2D code reader designed for industrial environments. This manual provides detailed information on product overview, installation, wiring, system settings, and troubleshooting to help users operate the device safely and effectively.
Key sections include application considerations, reading 2D codes, communication settings, maintenance procedures, and a full list of specifications and dimensions. Safety warnings, warranty terms, and regulatory compliance information are also included.
| Field of vision | 5 to 10 mm (horizontal), 15 to 30 mm (vertical) |
|---|---|
| Working distance | 40 mm (contact) |
| Power supply voltage | 5 VDC ± 10 % |
| Current consumption | 1 A max. |
| Serial interface | RS-232C |
| Operating temperature range | 0 °C to 40 °C (operating), –25 °C to 60 °C (storage) |
| Weight | Approx. 230 g |
| Degree of protection | IP64 |
The power supply cable should be kept as short as possible, with a maximum length of 10 m.
It can read DataMatrix ECC200 (10 × 10 to 64 × 64, 8 × 18 to 16 × 48) and QR Code Model 1.2 (21 × 21 to 57 × 57).
The device can operate in ambient humidity from 35 % to 85 % without condensation.
No, the manual explicitly states that the product must not be installed outdoors.
