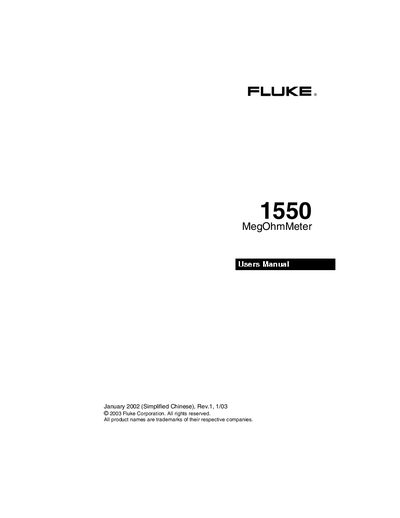

This document is the user manual of Fluke 1550 MegOhmMeter
This manual introduces the Fluke 1550 MegOhmMeter, a high‑voltage insulation tester for circuits such as distribution panels and cables. It details the four test‑voltage settings, resistance measurement range, LCD display, IR port, and other key features.
The guide covers safety precautions, power‑supply options (AC charger and DC charger), step‑by‑step operation, part replacement, and full technical specifications including dimensions, weight, temperature limits, and accuracy. Warranty information and contact details for Fluke service are also provided. This manual is written in Chinese.
| Display size | 75 mm × 105 mm |
|---|---|
| Power source | 12 V lead‑acid battery (Yuasa NP2.8‑12) |
| AC charger input | 85 V–250 V, 50/60 Hz, 50 VA |
| DC charger input | 10 V–15 V |
| Weight | 4 kg (8.8 lb) |
| Operating temperature | ‑20 °C to 40 °C |
| Test voltage settings | 500 V, 1 kV, 2.5 kV, 5 kV |
Fluke provides a two‑year warranty from the date of shipment, with a 90‑day warranty on parts, repairs, and service.
The meter offers four test‑voltage settings: 500 V, 1 kV, 2.5 kV, and 5 kV.
