Key features of the product include:

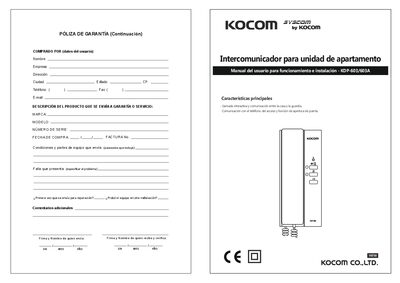

This manual describes the KDP-603/603A apartment unit intercom, a device that enables interactive calls between apartments, the guard room, and the access telephone, and can open the entrance door remotely. It includes safety warnings, wiring diagrams, and functional descriptions to ensure proper installation and use.
Key sections cover safety precautions, step‑by‑step installation, wiring specifications, functional operation (calling, communication, door opening), and maintenance guidelines. The document also lists technical specifications such as voltage requirements, power consumption, and physical dimensions. This manual is written in Spanish.
| Operating voltage (DC) | 14V~18V |
|---|---|
| Power consumption (standby, DC) | 1W |
| Power consumption (operation, DC) | 3W |
| Operating voltage (AC) | 220V 60Hz |
| Power consumption (standby, AC) | 1.5W |
| Power consumption (operation, AC) | 5W |
| Maximum cable length | 50 m |
| Dimensions (W×H×D) | 92 mm × 210 mm × 57 mm |
The intercom can be connected with a single cable up to 50 meters long.
