XMT series intelligent temperature controller adopts fuzzy PID algorithm, with input signal software switching and multiple output control modes, suitable for complex working environment and high control requirements.
This manual introduces the XMT9000 series intelligent temperature controller, describing its fuzzy‑PID control algorithm, universal signal inputs, energy‑saving features, and alarm functions. It also gives safety warnings and installation guidelines for use in complex industrial environments.
The document contains detailed technical specifications such as input types, measurement ranges, power consumption, and output options, as well as step‑by‑step instructions for setting temperature, adjusting PID parameters, performing auto‑tuning, and configuring alarm limits. This manual is written in Chinese.
| Thermocouple types supported | K, J, E, S, N, T, B, R, Wre |
|---|---|
| K‑type temperature range | -50 °C to +1350 °C |
| Power consumption | < 3 W |
| Supply voltage | 180‑245 V AC / 50 Hz (optional 86‑265 V AC) |
| Sampling rate | 2 samples per second |

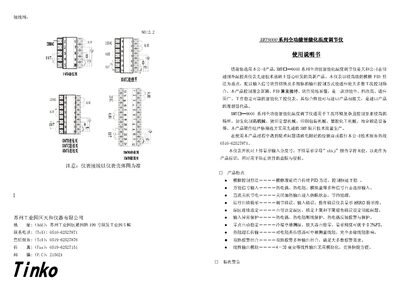

The wiring diagram is shown on page 1 and lists terminals such as N0, ALM1, ALM2, OUT, and the power supply connections.
Set the desired temperature, then enter the A t parameter layer and set S V to 1; the A t indicator will flash, indicating that auto‑tuning is active.
