The Toshiba TLP3220 is a SSOP4 photocoupler with a 1a contact, 100V blocking voltage, 5mA trigger LED current, 80mA max on current, 14Ω max on resistance, 8pF max output terminals capacitance, and 1500Vrms minimum input-output isolation withstand voltage
The TLP3220 is a photo‑MOSFET and infrared LED optocoupler packaged in a 1.27 mm pitch SSOP‑4 (4‑pin) module, offering a low on‑resistance and high isolation voltage. It is intended for high‑speed logic testing and high‑frequency measurement applications.

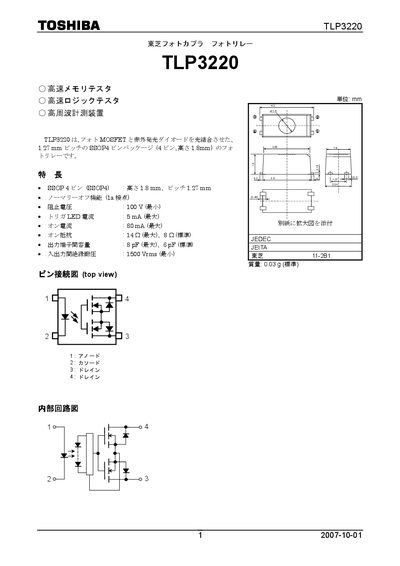

The datasheet includes absolute maximum ratings, recommended operating conditions, detailed electrical and switching characteristics, mechanical drawings, and handling precautions for reliable design integration. This manual is written in Japanese.
| Package | SSOP‑4, 1.27 mm pitch, 1.8 mm height |
|---|---|
| Blocking voltage (VOFF) | 100 V min |
| On‑current (ION) | 80 mA max |
| Isolation voltage | 1500 Vrms min |
| Operating temperature range | -20 °C to 85 °C |
| Mass | 0.03 g |
The device has a minimum blocking voltage of 100 V.
The recommended operating temperature is –20 °C to 85 °C, with storage allowed from –40 °C to 125 °C.
It is supplied in an SSOP‑4 package with a 1.27 mm pitch and 1.8 mm height.
