This manual introduces the maintenance methods of SANYO air conditioners

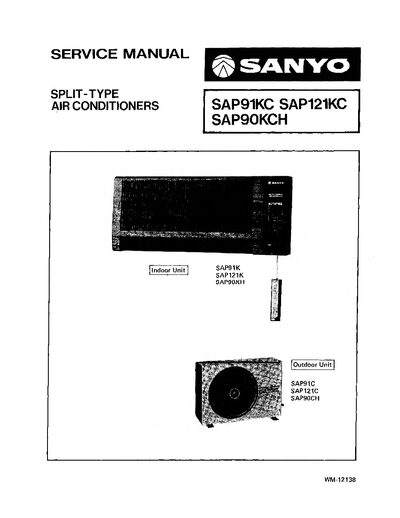

This service manual covers all aspects of Sanyo split‑type air conditioners, including unit specifications, major component details, installation instructions, operating guidelines, troubleshooting steps, and detailed service procedures. It also contains parts lists, refrigerant schematics, and wiring diagrams for the SAP91KC and SAP121KC models.
The document is organized into sections such as Unit Specifications, Major Component Specifications, Compressor Identification, Construction of the Unit, Operating Instructions, Installation Instructions, Troubleshooting, Disassembly and Service Procedures, and Appendices with conversion tables and diagrams.
| Cooling capacity | 9,000 BTU/hr (SAP91KC), 12,000 BTU/hr (SAP121KC) |
|---|---|
| Voltage rating | 115 V (both models) |
| Running amps | 8.0 A (SAP91KC), 10.6 A (SAP121KC) |
| Power input | 900 W (SAP91KC), 1,200 W (SAP121KC) |
| Refrigerant (R22) charge | 2.36 g (SAP91KC), 2.51 g (SAP121KC) |
Sanyo provides a one‑year warranty on the whole unit and a five‑year warranty on the compressor part.
The compressor model number is printed on the compressor label, for example C‑R70H2V for the SAP91KC model.
