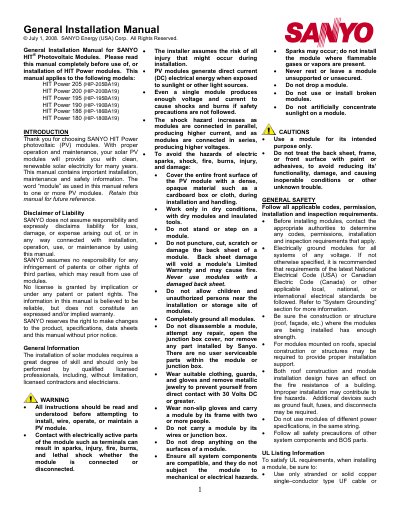

Installation guide for SANYO HIT Power photovoltaic modules covering safety, mounting, wiring, and maintenance.
This guide provides step‑by‑step instructions for installing SANYO HIT Power photovoltaic modules. It includes safety warnings, required tools, mounting methods, wiring practices, and grounding procedures to ensure a reliable and code‑compliant solar array.
The manual also outlines operating conditions, mechanical loading limits, and maintenance recommendations to keep the modules performing optimally over their service life.
| Ambient temperature range | -20°C to 46°C |
|---|---|
| Wind pressure load rating | 2,880 N/m2 (60 PSF) |
| Ground wire size | No.12 AWG (3.5 mm²) |
| Recommended bolt torque for mounting clamps | 16–20 N·m |
| Maximum modules in series (recommended) | 7 |
They are rated for ambient temperatures from –20 °C (‑4 °F) up to 46 °C (115 °F).
It is recommended to connect no more than seven modules in series.
A No.12 AWG (3.5 mm²) copper ground wire must be used.
The modules can withstand a wind pressure of 2,880 N/m² (60 PSF).
