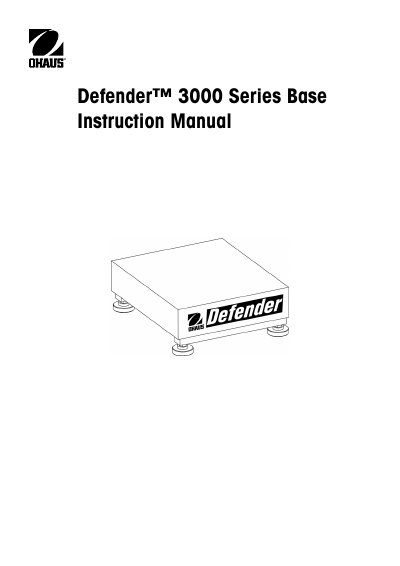

This manual covers installation, and maintenance instructions for the Ohaus Defender TM Series Base. Please read this manual completely before installation and operation.
The Ohaus Defender 3000 Series Base is a weighing platform designed for use with the 3000 Series Indicator. The manual covers safety precautions, unpacking, assembly of the weighing pan, and wiring connections for six-wire load cells. It also details how to select a proper location and level the base using the four leveling feet.
| Ambient Temperature | -10°C to +40 °C |
|---|---|
| Relative Humidity | 10% to 90% relative humidity, non-condensing |
| Height above sea level | Up to 4,000m |
| Load Cell Protection | IP67 |
| Safe Overload Capacity | 125% of capacity |
| Load Cell Type | 350 Ohm, aluminum, single point |
| Load Cell Excitation | 6-18V DC/AC |
Operate the base only under specified ambient conditions, ensure the load cell cable does not pose a tripping hazard, and do not operate in hazardous environments or unstable locations.
Always lift from the bottom frame when moving the base; do not lift by the top frame.
