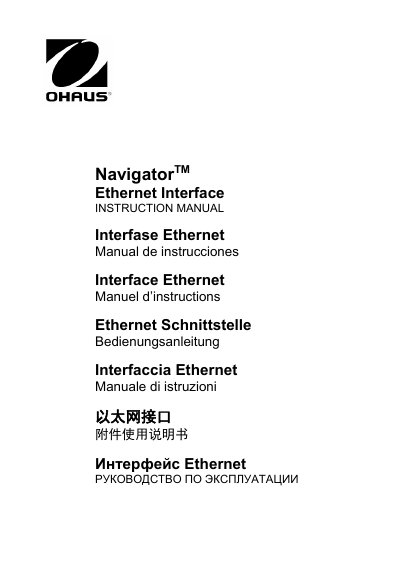

Ohaus EN-1 Ethernet Interface Instruction Manual

About this manual

This document provides instructions for the Ohaus EN-1 Ethernet Interface Kit, an accessory designed exclusively for use with the Ohaus Navigator Series Scales. It covers the physical installation of the interface module and explains how to connect it via an RJ45 cable.

The manual details the various menu settings available after installation, such as PRINT modes (Stable, A.Print) and Ethernet configurations. It also describes the data output formats in ASCII, including weight, stability indicators, timestamps, and specific command responses for controlling the scale remotely.

What's inside

• Introduction
• Interface Installation
• Ethernet Interface Setup Definitions
• Operation Output
• Input Commands
• Auto-Print Operation
• Ethernet Configuration

Frequently asked questions

Which scales is this Ethernet interface kit compatible with?

This Ethernet interface kit is for use with the Ohaus Navigator Series Scales only.

What is the default port number for the Ethernet connection?

The default port number for the Ethernet connection is 9761.

What is the default IP address of the Ethernet Interface Kit?

The default IP address of the Ethernet Interface Kit is 169.254.1.1.
