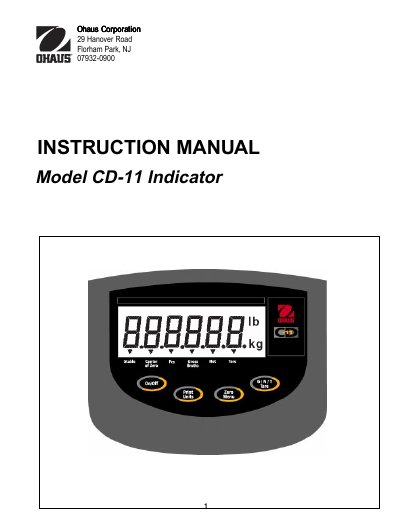

CD-11 Indicator instruction manual
The Ohaus CD-11 Indicator is a rugged, reliable electronic weight indicator designed for easy operation. It has been NTEP tested and complies with Class III and IIIL requirements of NIST HB44 for 1:5000 performance in pounds, kilograms, or grams. The device features a six-digit LCD display and can drive up to four 350 ohm load cells with capacity selections up to 20,000 lb/kg and a maximum resolution of 1:20,000.
| Load Cell Capacity | up to four 350 ohm load cells |
|---|---|
| Capacity Selection | up to 20,000 lb/kg |
| Maximum Resolution | 1:20,000 |
| Power Source | six Alkaline C batteries or AC adapter |
| Display Type | six digit LCD |
| Compliance Standard | NIST HB44 Class III and IIIL |
The CD-11 Indicator provides capacity selections up to 20,000 lb/kg.
The indicator can drive up to four 350 ohm load cells.
It operates from six Alkaline C batteries or can be powered externally using the supplied AC adapter.
