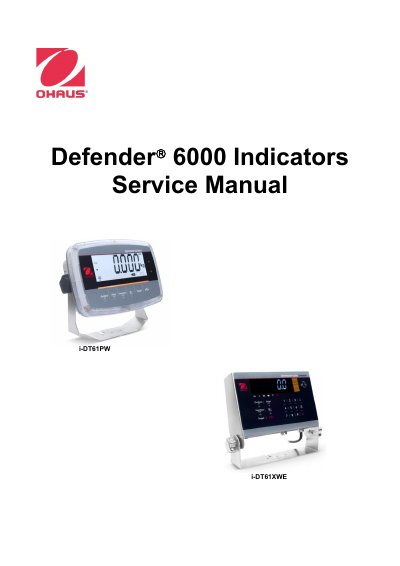

This document is an instruction manual for Ohaus Defender 6000 Indicators Service Manual i-DT61PW i-DT61XWE, which introduces the product's safety precautions, intended use, external connections, internal connections, menu settings, etc.
This document provides instructions for performing routine maintenance and servicing on the Ohaus Defender 6000 Series Scales. It details safety precautions, required tools, and procedures for opening the housing to access internal components.
The manual covers specific menu settings for calibration (Zero, Span, Linearity) and service functions like firmware updates. It includes step-by-step guides for replacing major components such as the Printed Circuit Board (PCB), display, loadcell cable, control panel, power switch, and IR receiver.
| Intended Use Environment | light industry |
|---|---|
| Power Input (i-DT61PW) | AC Power |
| Power Input (i-DT61XWE) | AC Power |
Service should only be performed by authorized personnel.
The instrument is intended for use in light industry for measuring parameters described in the operating instructions.
The service area must be protected from electrostatic discharge, free of vibrations, and have a stable, level work surface.
You need an IR Communication Kit USB 30572910 and a computer with an RS232/USB interface for testing communications.
