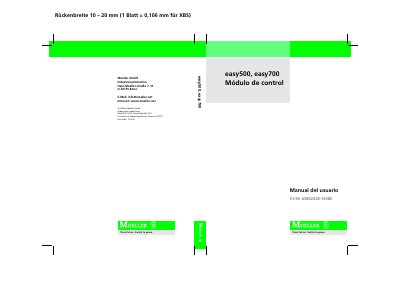

easy500, easy700 control module user manual, including safety instructions, installation, use and so on
This document is the official user manual for the Moeller easy500 and easy700 control modules. It serves as a comprehensive guide for qualified technical personnel on how to install, wire, and operate these automation devices safely and effectively.
The manual details the entire lifecycle of the device usage, starting with safety precautions and installation requirements. It then guides the user through connecting power sources, digital inputs/outputs, analog signals, and bus systems. A significant portion is dedicated to programming the contact schemes using the integrated keyboard and menu system, explaining how to configure various functions such as timers, counters, comparators, and text displays. This manual is written in Spanish.
The back width must be between 10 and 20 mm.
The power supply must comply with CEI 60364-4-41 or HD 384.4.41 S2.
The text states that deviations from nominal voltage values must not exceed the tolerance limits described in the specifications.
