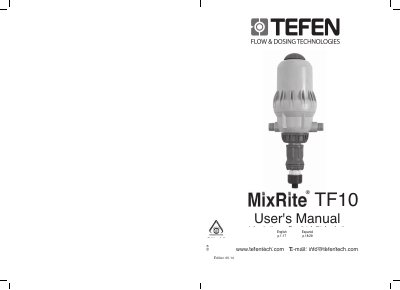

This is a user manual that introduces the use of Tefen MixRite TF 10 Fertilizer and Chemicals Injector.
The TEFEN MixRite TF 10 is a proportioning dosing injector designed to be fitted on a water line. It uses the flow of water passing through it to activate the pumping mechanism, injecting liquid fertilizer or other additives into the water stream in a relative quantity.
Before operation, an initial calibration is required to ensure accuracy with the printed scale. The device allows for adjustable injection rates ranging from 0.1% to 5% relative to the water flow rate and operates within specific ranges of water pressure (1-8 bar) and flow rate (0.5-10 m³/Hr).
| Water flow rate | 0.5 and 10 m³/Hr (2 - 45 GPM) |
|---|---|
| Water pressure | 1 and 8 bar (14.7 and 120 PSI) |
| Temperature range | Not less than 4°C and not more than 40°C |
| Head loss (Low flow) | 0.1 Bar |
An initial calibration should be done to assure an accurate match with the injector printed scale.
A 120 mesh water filter is recommended prior to the MixRite injector.
The package includes one proportioning dosing injector, two compression fittings, a flexible suction tube with seal and filter, stand brackets, a user manual, and optional legs.
