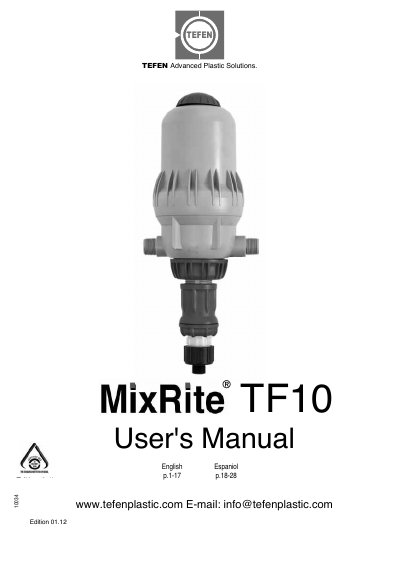

TEFEN MixRite TF 10 Proportioning Dosing Injector User's Manual
The TEFEN MixRite TF 10 is a proportioning dosing injector designed to be fitted on water lines. It uses the flow of water passing through it to activate the pumping of liquid fertilizer or other additives, injecting them into the line in relative quantities. The device operates within specific technical ranges for water flow rate (0.5 to 10 m³/Hr), pressure (1 to 8 bar), and temperature.
Read onlineTEFEN MixRite TF 10 specifications
| Water flow rate range | 0.5 to 10 m³/Hr (2 - 45 GPM) |
|---|---|
| Water pressure range | 1 to 8 bar (14.7 and 120 PSI) |
| Operating temperature range | Not less than 4°C and not more than 40°C |
| Injection rate deviation | +/- 10% |
Source: TEFEN MixRite TF 10 Proportioning Dosing Injector User's Manual
All TEFEN MixRite TF 10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What filter is recommended before the injector?
A 120 mesh water filter is recommended prior to the MixRite injector.
From: TEFEN MixRite TF 10 Proportioning Dosing Injector User's Manual
How do you adjust the fertilizer metering?
Turn the adjustment control nut counterclockwise to increase the amount of fertilizer and clockwise to decrease it.
From: TEFEN MixRite TF 10 Proportioning Dosing Injector User's Manual
What is required before using the injector?
An initial calibration should be done to assure an accurate match with the injector printed scale.
From: TEFEN MixRite TF 10 Proportioning Dosing Injector User's Manual
What is recommended prior to installation?
A 120 mesh water filter is recommended prior to the MixRite injector.
From: TEFEN MixRite TF 10 Proportioning Dosing Injector User's Manual
How do I adjust the fertilizer metering rate?
Turn the adjustment control nut on the metering cylinder; turning it counterclockwise increases the amount metered, while turning it clockwise decreases it.
From: Tefen MixRite TF 10 Fertilizer and Chemicals Injector User's Manual
What should I do if the injector does not work?
Check if the inlet and outlet valves are open, if the inlet filter is blocked, or if there is no water flow at the appropriate pressure.
From: Tefen MixRite TF 10 Fertilizer and Chemicals Injector User's Manual
