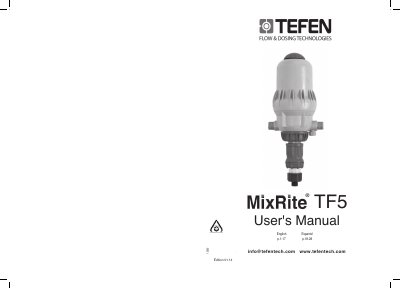

This document is the user's manual for TEFEN Advanced Plastic Solutions. It provides instructions and features of the TEFEN 1 MixRite TF5 proportioning dosing injector.
The TEFEN MixRite TF5 is a proportioning dosing injector designed to be fitted on water lines. It operates by using the flow of water passing through the device to activate a pump that injects liquid fertilizer or other additives into the water line in a relative quantity.
Before use, an initial calibration is required to ensure accuracy with the printed scale. The manual details installation steps, including checking package contents and mounting options for walls or stands.
| Water flow rate range | 0.2 and 5 m³/Hr (0.88-22 GPM) |
|---|---|
| Water pressure range | 1 and 8 bar (14.7 and 120 PSI) |
| Temperature range | Not less than 4°C and not more than 40°C |
| Max deviation injection rate | +/- 10% |
A 120 mesh water filter is recommended prior to the injector.
Yes, a 200 mesh filter must be used before the unit.
The package includes one injector, two compression fittings for a 32 mm PE pipe, a flexible suction tube with seal and filter, stand brackets, a manual, and optional legs.
