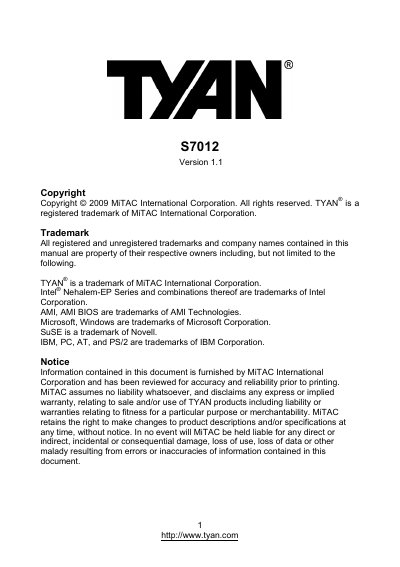

TYAN S7012 Server Motherboard User's Manual

This document introduces the TYAN S7012, including product name, model, specifications, features, etc.

Brand: TYAN
Category: Servers Computer
Document type: User Manual
Language: English
Pages: 88
File format: PDF
File size: 6.9 MB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: A18398DDEEEF3AC3EFF6A9BA4637D435
PDF: TYAN S7012 Server Motherboard User's Manual PDF

About this manual

The TYAN S7012 is a powerful server solution based on the Intel 5520 chipset designed to support up to two Nehalem-EP Series processors. This manual guides users through unboxing, hardware installation including CPU and memory, board mounting in an SSI EEB chassis, and connecting external devices.

The document also covers BIOS setup procedures for system configuration, diagnostics using beep codes and AMI POST codes, and technical support resources. It includes detailed specifications regarding supported CPUs, memory capacities, expansion slots, and onboard features like IPMI 2.0.

What's inside

Introduction
Hardware Specifications
Board Installation
BIOS Setup
Diagnostics
Technical Support

Specifications

Supported CPU Series	Intel Xeon Processor 5500 Series
Socket Type / Quantity	LGA1366 / (2)
Expansion Slots	(1) PCI-E x8 slot / (4) PCI-E Gen.2 x8 slots
LAN Port Quantity	(4)

Frequently asked questions

What chassis form factor does the S7012 support?

The motherboard matches the SSI EEB specification.

Which IPMI standard is the S7012 compliant with?

It is an IPMI 2.0 compliant baseboard management controller.
