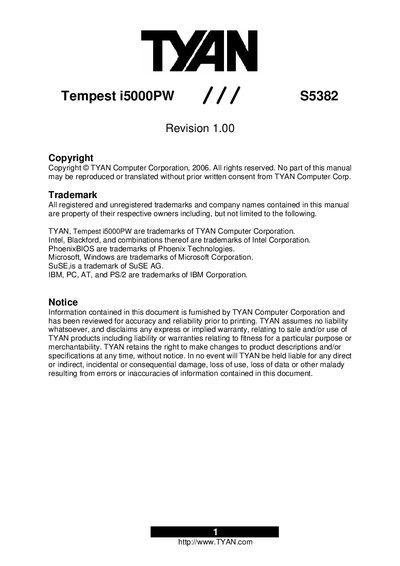

TYAN Tempest i5000PW User Manual

This is a user manual for TYAN Tempest i5000PW

Brand: TYAN
Category: Other Computer Accessories
Document type: User Manual
Language: English
Pages: 77
File format: PDF
File size: 3.2 MB
Published: 12 January, 2012
Updated: 01 October, 2023
MD5 checksum: AC285F88109ACD1762E15F784D68FDF1
PDF: TYAN Tempest i5000PW User Manual PDF

About this manual

This manual introduces the TYAN Tempest i5000PW server motherboard, detailing its dual‑processor capabilities, memory configuration, and extensive I/O options. It includes a full hardware specification, board‑level installation guidance, and BIOS configuration instructions.

Additional sections cover diagnostics, warranty, regulatory compliance, and technical support resources, helping users install, configure, and maintain the system safely and efficiently.

What's inside

Introduction
Hardware Specifications
Software Specifications
Board Installation
BIOS Setup
Diagnostics
Technical Support
Regulatory Compliance

Specifications

CPU sockets	Dual LGA771
Supported processors	Intel Dempsey / Woodcrest / Clovertown
Maximum memory	64 GB DDR2‑533/667
Form factor	SSI / Extended ATX (12" x 13")
USB ports	8 USB 2.0 ports
SATA ports	6 SATA2.0 ports
SAS ports	8 SAS ports

Frequently asked questions

How many memory slots does the Tempest i5000PW have?

It provides sixteen 240‑pin DDR2 FBDIMM sockets, arranged on two memory riser cards with eight slots each.
