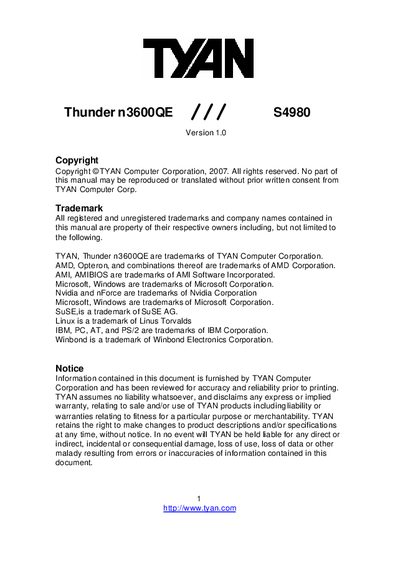

This is the description document of TYAN Thunder n3600QE /// S4980 mainboard
The Thunder n3600 QE S4980 is a high‑performance server motherboard based on the NVIDIA NFP3600 and SMSC SCH 5017 chipsets. It supports up to four AMD Opteron processors, up to 64 GB of registered ECC DDR2 memory, dual Gigabit Ethernet, integrated Serial ATA II, and an E‑ATX form factor.
This manual covers board installation, BIOS configuration, diagnostics, and regulatory compliance. It includes a table of contents, hardware specifications, wiring diagrams, and troubleshooting guidance to help system integrators and end users set up and maintain the platform. This manual is written in Chinese.
| Supported Processors | Up to four AMD Rev. F Opteron 8000 series CPUs |
|---|---|
| Maximum Memory | 64 GB registered ECC DDR2 (16 DIMM slots) |
| Form Factor | E‑ATX (12" × 13") |
| Power Management | ACPI S1, S4, S5 supported |
It can accommodate up to four AMD Rev. F Opteron 8000 series CPUs.
The board supports up to 64 GB of registered ECC DDR2 memory across 16 DIMM slots.
It follows the E‑ATX form factor with dimensions of 12" × 13".
