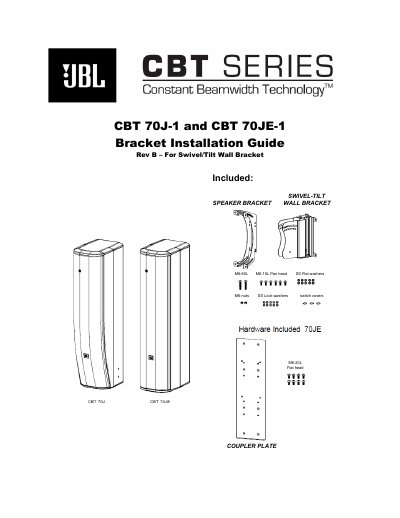

Describes how to install the JBL CBT 70J-1 and CBT 70JE-1 speakers
This guide provides instructions for installing the JBL CBT Series Swivel/Tilt Wall Bracket for the CBT 70J-1 and CBT 70JE-1 loudspeakers. The process involves running wiring, attaching the wall bracket, mounting the speaker bracket to the speaker, and sliding the assembly onto the wall mount. Hardware for attaching the wall bracket to the wall is not included.
The bracket allows for tilt adjustment of +/- 15 degrees with pre-set angles in 5-degree increments and continuous variable adjustment. It also supports a full 90-degree side-to-side swivel, though the actual range may be limited by the speaker cabinet hitting the wall depending on the tilt angle and mounting position.
| Tilt Range | +/- 15 degrees |
|---|---|
| Swivel Range | Full 90 degrees |
| Tilt Increments | 5 degree increments |
No, hardware for attaching the WALL BRACKET to the wall is not included.
The bracket allows for a tilt range of +/- 15 degrees.
No, a safety cable is not included and must be attached separately to the speaker cabinet.
