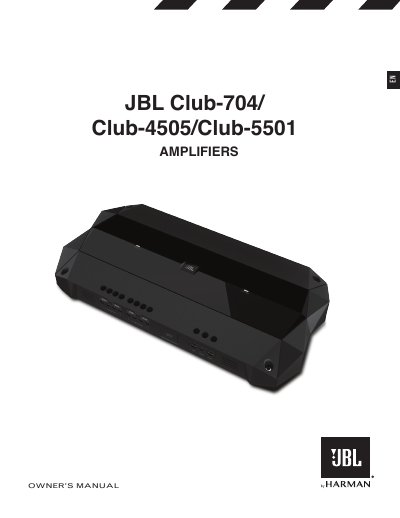

This file is the installation manual for JBL Club-704/ Club-4505/Club-5501 amplifiers, which introduces the installation, connection and use methods of amplifiers
This manual provides installation and wiring instructions for the JBL Club-704, Club-4505, and Club-5501 amplifiers. It details how to connect speakers, power, and RCA inputs, including specific configurations for 2, 3, 4, and 5-channel operations. Important safety precautions regarding battery disconnection and fuse replacement are included.
| Fuse Rating (Club-704, Club-5501) | 30A |
|---|---|
| Fuse Rating (Club-4505) | 30A |
| Power Fuse Minimum (Club-704, Club-5501) | 60A |
| Power Fuse Minimum (Club-4505) | 105A |
| Minimum Power Wire Size (Club-704) | 10 gauge |
| Minimum Power Wire Size (Club-4505, Club-5501) | 8 gauge |
| Minimum Speaker Impedance (Stereo/Subwoofer) | 2 ohms |
| Minimum Speaker Impedance (Bridged) | 4 ohms |
Disconnect the vehicle's negative (–) battery terminal before beginning the installation.
It illuminates in red if the amp enters Protect mode due to over/under voltage, short circuit, failure, or excessive heat.
