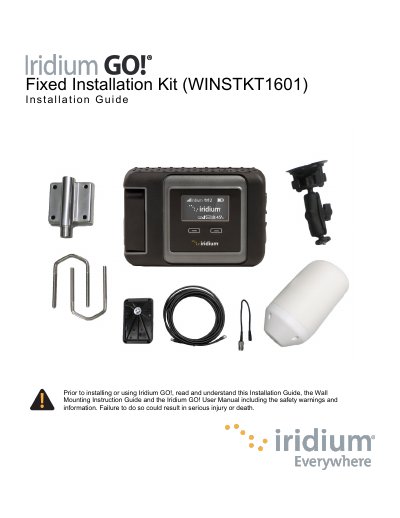

Iridium WINSTKT1601 Fixed Installation Kit Installation Guide

This document is the Installation Guide for Iridium GO! Fixed Installation Kit, which introduces the installation steps and precautions.

Brand: Iridium
Category: Other Electronics
Document type: Installation Guide
Language: English
Pages: 12
File format: PDF
File size: 1.1 MB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 90D92D7C19D5E639E1AAE40580985082
PDF: Iridium WINSTKT1601 Fixed Installation Kit Installation Guide PDF

About this manual

The document serves as an installation guide for the Iridium GO! Fixed Installation Kit, model WINSTKT1601. It details the contents of the kit, including the passive omnidirectional antenna, cables, and various mounting brackets. The guide emphasizes safety warnings regarding radio frequency exposure and proper grounding systems before beginning the installation process.

What's inside

Kit contents
Antenna and Cable Installation
Wall Mount Bracket Installation
RAM Mount Installation
Specifications

Frequently asked questions

What minimum separation distance must be maintained between the antenna and a person during testing?

You must maintain a separation of at least 20 cm (7.8 inches) from the antenna during the test.

What is the minimum safe distance required between an antenna and any person during radio transmission?

No person can come closer than 20 cm (7.8 inches) to the antenna while it is transmitting.

What is the maximum allowable bend radius for the passive antenna cable?

The bend radius of the cable must not go below 25mm.
