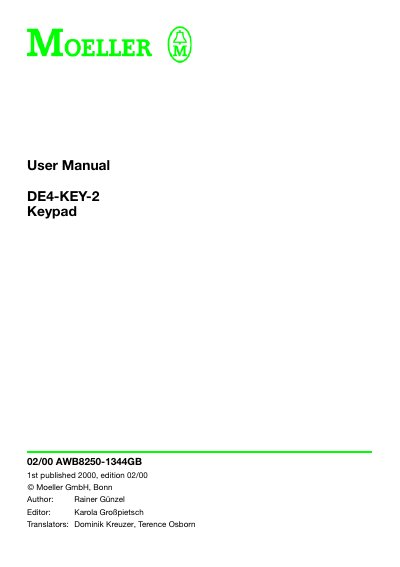

This manual describes the basic functions and usage methods of DE4-KEY-2 keypad, as well as the connection, installation and maintenance of the keypad.
The Moeller DE4-KEY-2 is an optional LCD keypad designed for Drives Extensions generation 4. It allows users to configure drive controllers such as soft starters, frequency inverters, and servo controllers by entering parameters via function keys and viewing status messages on the display. The device is hot-pluggable, meaning it can be connected or disconnected while the drive controller is powered on.
| Product Type | LCD keypad |
|---|---|
| Compatible Controllers | Soft starter, Frequency inverter, Servo controller |
| Number of Function Keys | 8 |
| Degree of Protection | IP 20 |
| Power Supply | from the drive controller |
Yes, the keypad is hot-pluggable and can be connected and disconnected while the keypad and drive controller are switched on.
The degree of protection for the DE 4-KEY-2 is IP 20.
The keypad receives its power supply directly from the drive controller.
