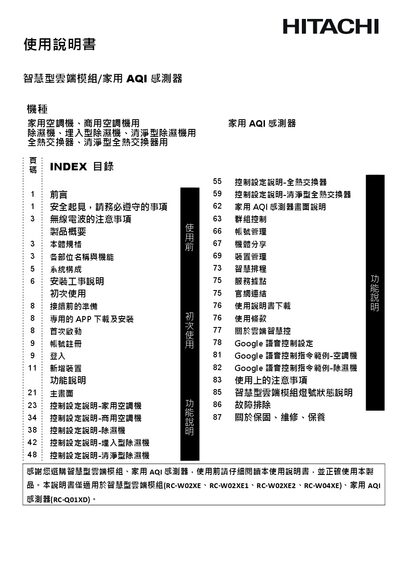

This document provides instructions for using the smart cloud module/home AQI sensor, which is suitable for home air conditioners, commercial air conditioners, dehumidifiers, built-in dehumidifiers, purifying dehumidifiers, heat exchangers, and purifying heat exchangers. The document includes safety precautions, product specifications, function descriptions, pre-use preparation, installation instructions, user registration, device control settings, etc.
The manual provides an overview of the Smart Cloud Module and Home AQI Sensor, including safety precautions, product specifications, and component functions. It outlines the system architecture and required operating environment for reliable wireless communication.
Detailed instructions cover installation methods, initial preparation, app download and registration, first‑time activation, account login, and control settings for various HVAC equipment. The guide also includes LED status explanations, troubleshooting steps, and warranty information. This manual is written in Chinese.
| Power Supply | DC 5 V |
|---|---|
| Maximum Current Consumption | DC 350 mA |
| Dimensions (RC‑W02XE series) | 70 mm × 40 mm × 16 mm |
| Dimensions (RC‑W04XE) | 75 mm × 40 mm × 15.5 mm |
| Wireless Standard | IEEE 802.11 b/g/n |
| Transmission Frequency | 2,412 ~ 2,462 MHz |
| Operating Humidity | 20 % ~ 85 % (non‑condensing) |
