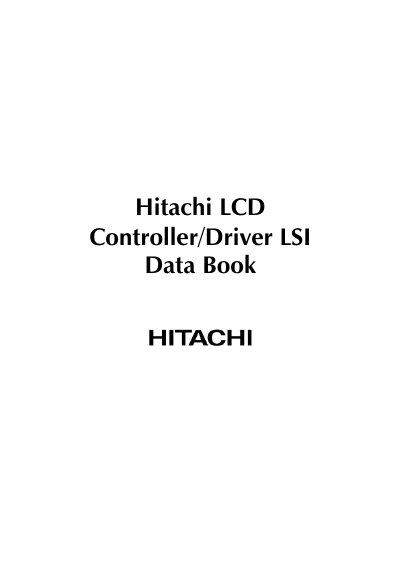

Technical data book for Hitachi LCD controller/driver LSIs covering specifications, packages, and reliability information.
The Hitachi LCD Controller/Driver LSI Data Book provides detailed technical information for a wide range of LCD driver and controller LSIs. It includes general information, quick reference tables, package details, mounting notes, and reliability test data.
The document is organized by driver type (column, common, segment, graphic, TFT, etc.) and lists specifications such as power‑supply ranges, operating temperature, memory size, channel count, and timing characteristics for each part number.
| Power supply voltage (HD44100R) | 2.7 V to 5.5 V |
|---|---|
| Operating temperature range | -20 °C to +75 °C |
| Channel count (HD44100R) | 40 channels |
The drivers operate from –20 °C up to +75 °C.
It requires a supply voltage between 2.7 V and 5.5 V.
The HD44100R provides 40 output channels.
