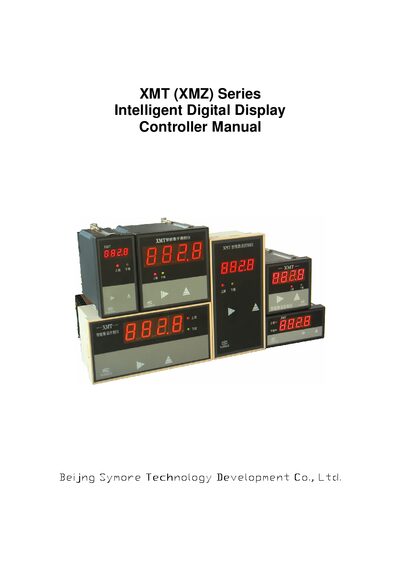

This manual introduces the general characteristics, model selection, main technical parameters, input signal, analog quantity output, popular type controller setup, input signal display, adjustable type controller installation, order details and company product brief introduction of XMT (XMZ) series intelligent digital display controller
This manual covers the XMT (XMZ) series intelligent digital display controller, detailing its general description, model selection, and main technical parameters. It explains supported input signals such as thermocouples, thermoresistance, Hall transmitters, standard voltage/current, and AC signals, as well as analog output options.
Installation, wiring diagrams, and step‑by‑step procedures for setting control values, adjusting limits, and configuring relay outputs are provided. The document also includes order details, product brief introductions, and warranty information. This manual is written in Chinese.
| Power source voltage | AC220V (±15%) |
|---|---|
| Power consumption | 3-4 W |
| Frequency | 50 Hz |
| Precision | 0.5%, 0.2% |
| Relay output contact capacity | 3A/220VAC or 5A/24VDC |
| Installation method | Flush mounting |
| Overall size (model AH) | 160 × 80 × 80 mm |
After finishing the set procedure for about 8 seconds, the controller recovers to normal operation and the set values are stored automatically.
Two‑stage control uses a single relay where relay 1 is effective and relay 2 is inactive, with a fixed return difference set by three numbers.
The relay can handle either 3 A at 220 VAC or 5 A at 24 VDC.
