This document describes the features and characteristics of the Creative T60 speaker, including volume knob, clear dialog button, surround button, etc.
The Creative MF1705 (T60) Bluetooth speaker is a portable 2.0‑system audio device with interchangeable AC plugs for worldwide use. It offers Bluetooth 5.0 connectivity, USB‑C, AUX‑in, and headphone/headset ports.

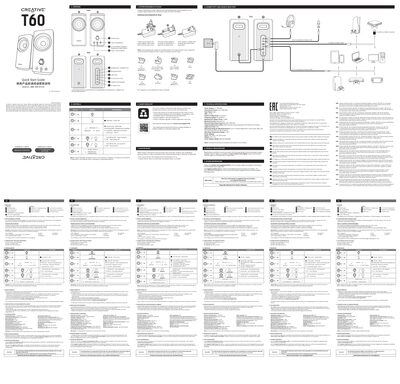

This manual covers product overview, how to replace AC plugs, connectivity and source selection, button functions, master reset procedure, technical specifications, product registration, warranty information and compliance details.
| Power Output | 2 x 15W RMS |
|---|---|
| Total System Power | Up to 30W RMS |
| Peak Power | 60W |
| Signal‑to‑Noise Ratio | ≥ 75 dB |
| System Configuration | 2.0 |
| Frequency Range | 50–20,000 Hz |
| Maximum RF Output Power | 4 dBm |
| Bluetooth Version | 5.0 |
| Bluetooth Operating Frequency | 2402–2480 MHz |
| Supported Bluetooth Profiles | A2DP, HFP |
| Supported Codec | SBC |
| Bluetooth Operating Range | Up to 10 meters |
| Operating Temperature Range | 0–45 °C |
| Power Adapter Input | 100–240V 50/60 Hz 0.8A |
| Power Adapter Output | 18V 2A |
| Power Adapter Model | NBS 30D180200D5 |
Place the AC plug on the power adapter and push it down until you hear a click, then pull the adapter’s clip down to release the plug.
Press and hold both Clear Dialog and Surround buttons for 5 seconds; the speaker will return to USB mode after the reset.
The speaker uses Bluetooth version 5.0.
The peak power is 60 W.
