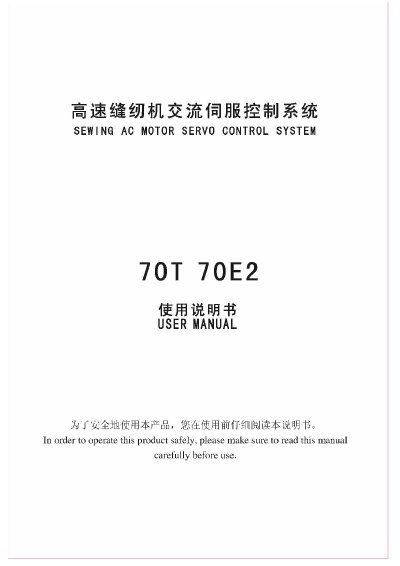

This manual provides safety guidelines, installation instructions, and operating procedures for the 701 /0E2 AC motor servo control system used in sewing equipment. It explains the system's components, wiring, and required environmental conditions before use.
The document also includes functional parameter tables, error code descriptions, and maintenance tips to help technicians diagnose and resolve common issues with the control unit. This manual is written in Chinese.
| Power | 400W, 500W |
|---|---|
| Input Signal Port | 2 channels |
| Rated Voltage | 220V 50/60Hz |
| Sewing Speed | 150 r/min – 5000 r/min |
ERR‑03 means the sensor magnet is abnormal and should be checked or replaced.
