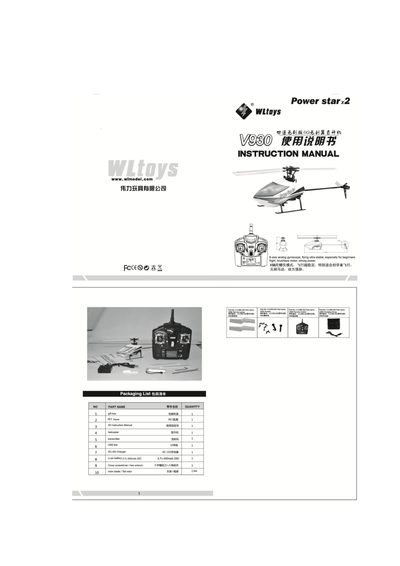

This manual covers safety precautions, battery handling, and preparation steps required before the first flight of the WLtoys V930 helicopter. It also explains how to bind the transmitter, install the flight battery, and operate the controls.
Additional sections include a parts list, exploded view diagrams, transmitter and receiver charts, and a troubleshooting guide to help resolve common issues such as binding failures or battery problems.
| Overall Length | 270 mm |
|---|---|
| Battery Specification | 3.7 V, 450 mAh, 25C |
| Flight Time | 57 min |
| Main Motor | Brushless 1106 |
| Working Voltage (Transmitter) | 6‑9 V |
| Working Current (Transmitter) | <150 mA |
| Output Power (Transmitter) | <=20 dBm |
Use a 3.7 V Li‑Po battery with a capacity of 450 mAh and a 25C discharge rating.
The flight time is approximately 57 minutes per charge.
Turn on the transmitter first, insert the battery into the chassis, wait for the receiver LEDs to stop flashing, then follow the binding procedure described in the manual.
