CRON Automatic Plate Loader User Manual

The CRON Automatic Plate Loader User Manual provides installation, operation, safety and maintenance instructions for the multi‑cassette and high‑capacity…

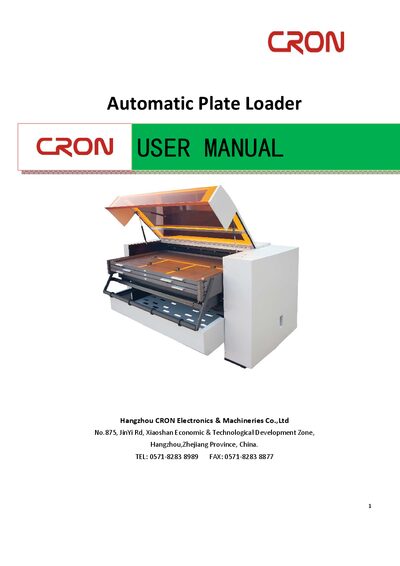

CRON Automatic Plate Loader User Manual - cover page
Brand
CRON
Category
Industrial Robot
Document type
User Manual
Language
Chinese
Pages
37
File format
PDF
File size
2.9 MB
Published
28 September, 2026
Updated
28 September, 2026
MD5 checksum
13BEDBF851749158F76032CA70687520
PDF
CRON Automatic Plate Loader User Manual PDF

About this manual

This manual describes how to install, configure and operate CRON's Automatic Plate Loader, an automatic plate feeding machine for CRON CTP devices. It covers two product families – the multi‑cassette series and the high‑capacity series – and includes details on power requirements, wiring, safety labels, installation site criteria, unboxing, adjustment, normal operation and routine maintenance.

The document also provides troubleshooting guidance for abnormal startup, plate feeding and paper removal issues, as well as extensive wiring diagrams and sensor definitions in the appendices. All procedures are intended for qualified installation and service personnel. This manual is written in Chinese.

What's inside

  • About this manual
  • Overview
  • Installation site and environmental requirements
  • Offloading, unboxing and installing
  • Operation instructions
  • Maintenance
  • Abnormal problems analysis and handling
  • Appendixes – wiring diagram

Specifications

AL26M3-50(H) dimensionsW 136 cm, L 110 cm, H 104 cm, Weight 480 kg
AL36M3-50(H) dimensionsW 160 cm, L 120 cm, H 110 cm, Weight 620 kg

Frequently asked questions

How much clearance is required around the loader?

A minimum distance of 100 cm between the machine and any wall is required.

Download PDF (2.9 MB)
