XL4005 is an efficient buck-type DC-DC converter with features including wide input voltage range, adjustable output voltage, maximum duty cycle of 100%, minimum voltage drop of 0.6V, fixed 300KHz switching frequency, and maximum 5A switching current.

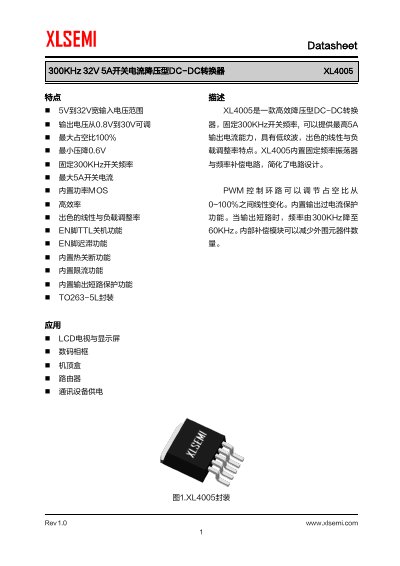

The XLSEMI XL4005 is an efficient step-down DC-DC converter featuring a fixed 300KHz switching frequency and a maximum output current of 5A. It operates with a wide input voltage range from 5V to 32V and allows for adjustable output voltages between 0.8V and 30V via an external resistor network. This manual is written in Chinese.
| Input Voltage Range | 5V to 32V |
|---|---|
| Output Voltage Range | 0.8V to 30V adjustable |
| Switching Frequency | Fixed 300KHz |
| Maximum Output Current | 5A |
| Package Type | TO263-5L |
| Operating Junction Temperature | -40 to 125 C |
The device features a fixed 300KHz switching frequency.
The XL4005 supports a maximum duty cycle of 100%.
