The XL7026 is a high-efficiency, high-voltage step-down DC-DC converter. It has a maximum input voltage of 100V, maximum duty cycle of 100%, minimum voltage drop of 0.5V, adjustable output voltage, maximum output power less than 5W, built-in high-voltage power MOSFET, efficiency up to 85%, excellent linearity and load regulation, and built-in current limiting and output short circuit protection functions.

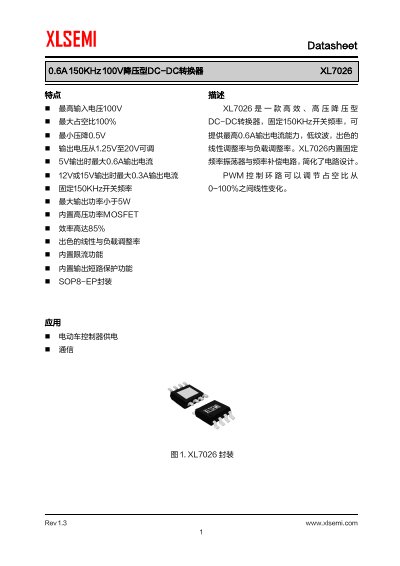

The XLSEMI XL7026 is a high-efficiency, high-voltage step-down DC-DC converter featuring a fixed 150KHz switching frequency. It is designed to provide up to 0.6A of output current with a maximum input voltage of 100V. The device includes an integrated high-voltage power MOSFET, simplifying circuit design and reducing component count. This manual is written in Chinese.
| Maximum Input Voltage | 100V |
|---|---|
| Switching Frequency | 150KHz |
| Output Voltage Range | 1.25V to 20V |
| Maximum Power Output | 5W |
| Package Type | SOP8-EP |
| Operating Junction Temperature | -40 to 125°C |
The maximum input voltage is 100V.
The device has a fixed switching frequency of 150KHz.
Yes, it features a built-in high-voltage power MOSFET.
