XL6012 is a feature-rich switch current boost/buck type DC-DC converter with a wide input voltage range, output voltage up to 60V, excellent transient response and conversion efficiency, as well as multiple protection functions and built-in circuits, suitable for various application fields.

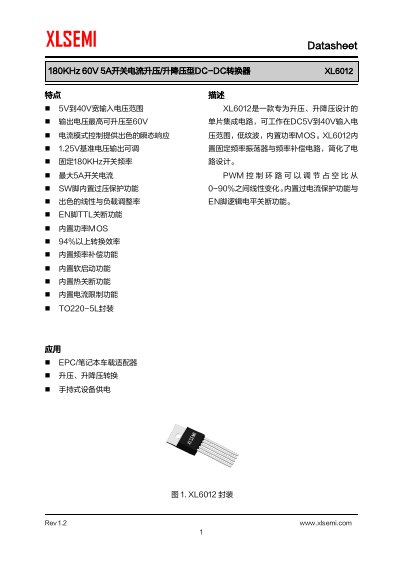

The XL6012 is a single-chip integrated circuit designed specifically for boost and buck-boost applications. It supports a wide input voltage range of 5V to 40V and can boost the output voltage up to a maximum of 60V. The device features a fixed 180KHz switching frequency and a maximum switch current of 5A. This manual is written in Chinese.
| Input Voltage Range | 5V to 40V |
|---|---|
| Maximum Output Voltage | 60V |
| Maximum Switch Current | 5A |
| Switching Frequency | 180KHz |
| Reference Voltage | 1.25V |
| Package Type | TO220-5L |
| Conversion Efficiency | >93% |
The device supports a wide input voltage range from 5V to 40V.
The maximum output voltage can be boosted up to 60V.
The device operates with a fixed switching frequency of 180KHz.
