The VF200 series is a product that can be queried online. It has powerful features for rotary tables and injection molding machines. It uses vector control technology to generate high torque even at low speeds. The operation panel is user-friendly with large potentiometers and clear displays. It supports LAN connection and RS485 serial communication, and has output short circuit protection and high-speed current limiting functions.

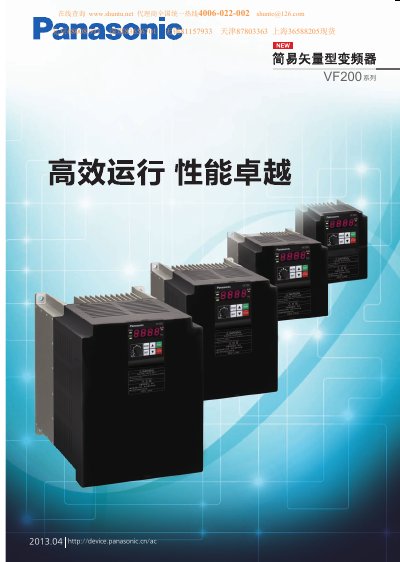

This document provides an overview of the Panasonic VF200 series variable frequency drive (VFD). It lists available models ranging from 0.2kW to 15kW for both 200V and 400V input voltages, along with their corresponding part numbers and weights.
The leaflet details key technical specifications including input/output voltage ranges, frequency control, communication protocols (Modbus-RTU over RS485), and terminal assignments. It also includes environmental operating conditions and a wiring diagram. This manual is written in Chinese.
| Power Rating (200V) | 0.2 kW to 2.2 kW |
|---|---|
| Input Voltage (200V models) | 200~230V AC |
| Input Voltage (400V models) | 380~460V AC |
| Communication Protocol | Modbus-RTU |
| Communication Interface | RS485 |
The VF200 supports the Modbus-RTU protocol via an RS485 interface.
The 200V models are available in ratings of 0.2kW, 0.4kW, 0.75kW, 1.5kW, and 2.2kW.
The unit operates within a temperature range of -10 to +50°C.
