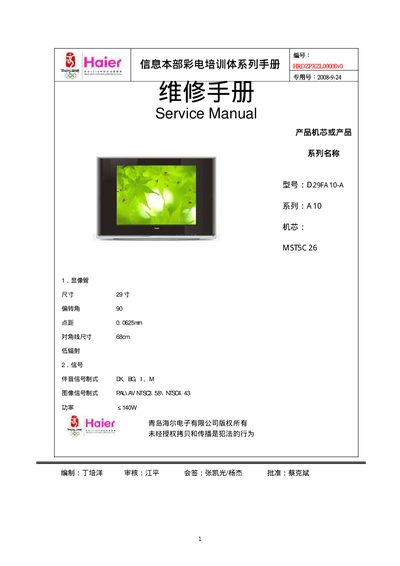

Haier D29FA10-A TV repair manual, introduces the product features and characteristics of this TV, safety warnings, disassembly instructions, operation instructions and other content, suitable for Haier D29FA10-A TV repair
This manual provides detailed information for the Haier D29FA10‑A 29‑inch CRT TV, including safety warnings, hardware layout, and the required tools for service. It describes the TV’s main features, picture and audio standards, and the configuration of its internal modules.
The document contains step‑by‑step disassembly instructions, diagnostic procedures, typical fault tables, and guidance for firmware upgrades. Technical specifications, wiring diagrams, and part lists are also included to assist technicians in maintenance and repair tasks. This manual is written in Chinese.
| Display area | 29 inches |
|---|---|
| Total power input | 140 W |
| Voltage range | 220 V |
| Net weight | 41.7 kg |
| Number of preset channels | 256 |
| Built‑in speakers | 2 |
The TV uses a 29‑inch CRT display.
The TV provides YPbPr, S‑video and VGA connectors.
The unit consumes up to 140 W of power.
It can store 256 preset channels.
