This document introduces the functions and features of SCD series refrigerators, including the use of high-heat reflective tempered glass doors, refrigerated and frozen compartments, temperature control principles, and temperature adjustment.
The Haier SCD‑189GB/209GB/229GB series is a horizontal double‑door refrigerator freezer with a high‑heat‑reflective tempered glass door, dual temperature zones (refrigeration and freezing) and a no‑CFC design. It offers a total effective volume of 189 L, 209 L or 229 L, efficient condenser cooling, and a lockable glass door.

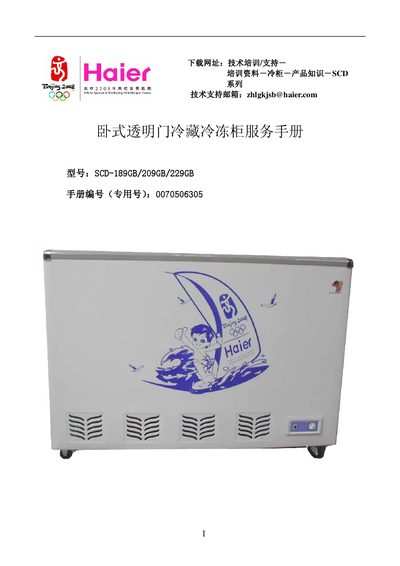

The service manual covers product features, safety precautions, technical specifications, wiring diagrams, temperature control, installation steps, disassembly procedures, typical faults and their remedies, as well as a detailed parts list and exploded view for maintenance and repair. This manual is written in Chinese.
| Total Effective Volume | 189 L / 209 L / 229 L |
|---|---|
| Rated Voltage | 220 V |
| Rated Frequency | 50 Hz |
| Input Power | 115 W / 120 W / 125 W |
| Compressor Model | QD88Y / EQ108 / QD123Y |
| Refrigerant | R600a |
| Rated Power Consumption | 1.10 kW / 1.20 kW / 1.30 kW |
| Net Weight | 48 kg / 50 kg / 53 kg |
| Dimensions (L×W×H) | 1030×560×880 mm / 1125×560×880 mm / 1220×560×880 mm |
Insert the key and rotate it clockwise about 45° to lock the door; rotate in the opposite direction to unlock.
