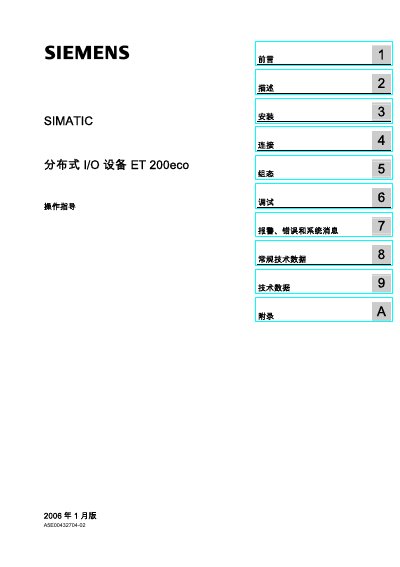

This document is the operation manual of Siemens distributed I/O device ET 200eco, which introduces the installation, connection, configuration, debugging and other content of the product.
This manual provides step‑by‑step instructions for installing the ET 200eco, including mounting dimensions, module insertion and wiring of M12, Y‑type and ECOFAST connectors. It also explains how to set the PROFIBUS DP address and connect the device to a grounding bus.
The guide details configuration procedures, commissioning, alarm and error handling, and includes extensive technical data such as environmental limits, EMC compliance, and part numbers for all I/O modules. Appendices contain ordering numbers, wiring diagrams and a glossary of terms. This manual is written in Chinese.
| Rated voltage | 24 V DC |
|---|---|
| ECOFAST connector part number | 6ES7 194-3AA00-0AA0 |
| M12, 7/8" connector part number | 6ES7 194-3AA00-0BA0 |
A warning triangle indicates a safety warning; other symbols indicate hazards that may cause property loss or minor injury.
The device complies with IEC 61131‑2, IEC 61784‑1:2002, EC Directives 73/23/EEC and 89/336/EEC, and AS/NZS 2064.
You can call +49 (911) 89 5‑3200 or email [email protected] for global technical assistance.
