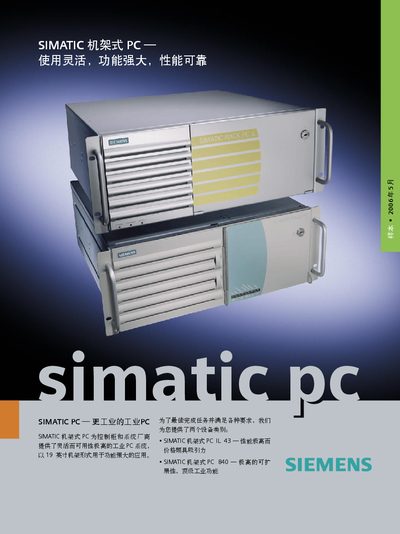

SIMATIC Rack PC is a high-quality, reliable industrial PC with a 19-inch form factor that can be installed horizontally and vertically, and can be used for a variety of tasks for a long time, such as measuring, controlling and adjusting process/machine sequences, production process visualization, image processing in the quality inspection range, data collection and management, etc.
The SIMATIC rack‑mount PC is a 19‑inch, 4U industrial computer designed for flexible installation in control cabinets and system cabinets. It offers high performance, extensive expandability, and robust construction with a full‑metal chassis, integrated industrial power supply, and high electromagnetic compatibility.
The guide covers hardware specifications, supported operating systems, monitoring and diagnostic tools, environmental ratings, and recommended accessories such as the PC Configurator, DiagMonitor, and optional RAID configurations. It also provides information on long‑term availability, warranty, and service support. This manual is written in Chinese.
| Processor | Intel Pentium e4551, 3.4 GHz |
|---|---|
| Memory | 256 MB DDR2‑533 SDRAM, up to 4 GB |
| Dimensions (W×H×D) | 430 mm × 177 mm × 449 mm |
| Weight | ≈19 kg |
| Operating Temperature Range | 5 °C – 40 °C (continuous) |
The PC can operate continuously in ambient temperatures from 5 °C to 40 °C.
The installation size is 430 mm wide, 177 mm high and 449 mm deep.
